This article provides a comprehensive guide for Synergita OKR administrators to set up and manage the Jira integration.

To enable the Jira integration, you must be an administrator.

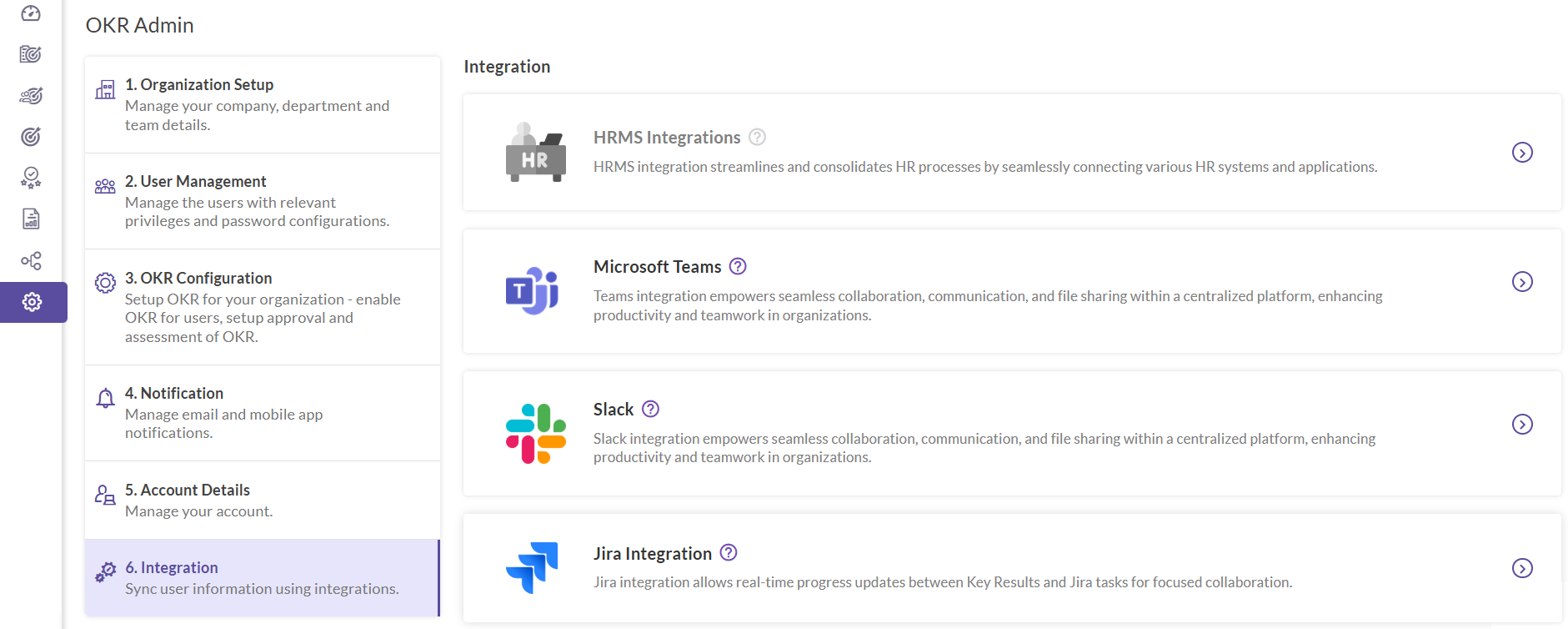

Step 1: Navigate to the Integration Page

  • Navigate to the OKR Admin section.
  • Go to the Integration section.
  • An option called Jira Integration should be visible. Click on this to open the integration page.

Step 2: Integrate with Jira

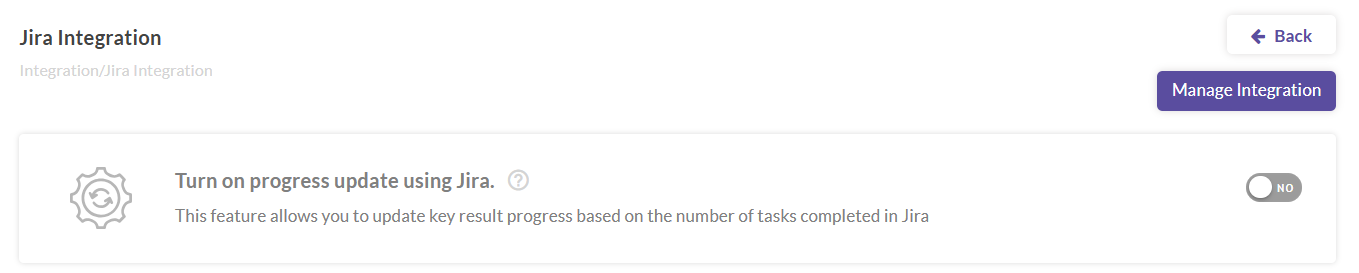

  • On the Jira Integration page, you must see a toggle to “Turn on progress update using Jira”.
  • This feature allows you to update key result progress based on the number of tasks completed in Jira.

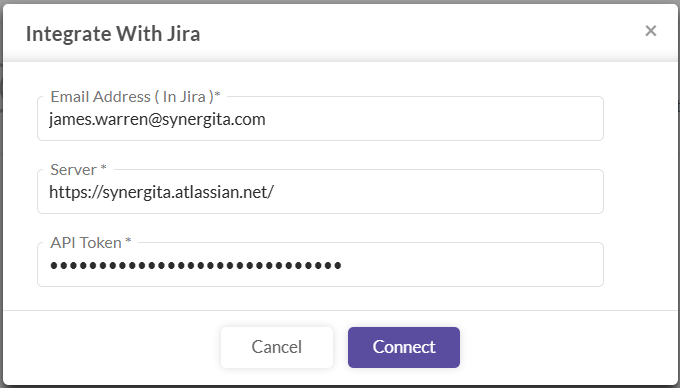

  • The toggle will be off by default. When you turn it on, a pop-up titled “Integrate with Jira” should appear for the connection setup.
  • In the pop-up, enter the following mandatory details:
    • Email Address (In Jira): Enter the admin's Jira email.
    • Server: This field should be filled with your Jira server URL. (e.g., http://<my-company>.atlassian.net/)
    • API Token: Enter the API token generated from your Jira account. You can generate this token by visiting Manage Profile >> Security >> API Tokens.

  • Click the Connect button to validate the credentials with Jira.
  • If the credentials are valid, the Jira connection will be established successfully.

Managing Integration Settings and User Access

After connecting to Jira, you can configure progress calculations and control user access from the Manage Integration page.

Access the Manage Integration Page

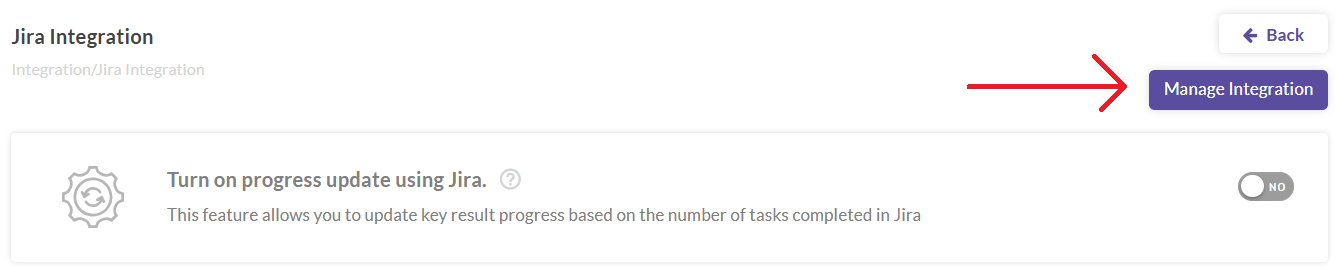

  • Click on the Manage Integration link, which should be placed above the toggle button.

  • This will open a new page split into three sections, each with clear headers: Jira Credentials, Progress Calculation Settings, and User Access Control.

Jira Credentials

  • If there are any changes with the credentials in Jira, it should be updated in this section.
  • Admins can change any of the fields and click on the Connect button.

Configure Progress Calculation Settings

  • This section has three numerical boxes for the status categories: To Do, In Progress, and Done.
  • The default percentage values are 0% for To Do, 50% for In Progress, and 100% for Done.
  • The progress of the linked key results will be calculated based on the status of Jira issues based on the values filled.
  • You can change these values as per your organization, between values 0 and 100. Always ensure that the values follow the logical order: To Do < In Progress < Done. If this condition is violated, you will be unable to save this.

Control User Access

  • This section allows the admin to define which users are permitted to use Jira Integration within the product.
  • There are two radio button options: Allow all users and Allow selected users.

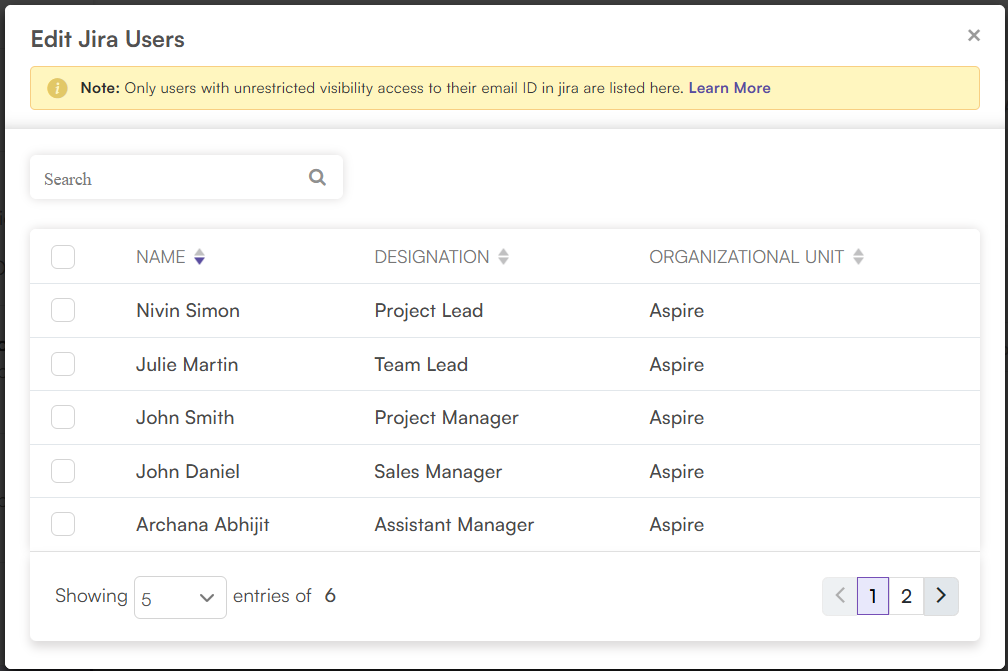

  • By default, Allow all users will be selected. If you click on Allow selected users, a pop-up titled “Edit Jira Users” will be displayed.

  • The pop-up shows a searchable, paginated list of all active users in the tenant, with columns for Name, Designation, and Organizational Unit (OU).
  • Once you select one or more users and click Save, only the selected users will have access to link Jira.
